BIRD_EYE

A rough iPhone 3D scan was converted into a flat bird-view plan. The result works as a graphic way to read the space from above.

Type

3D scan

Context

On-site spatial survey / design process

Medium

iPhone 3D scan converted into a 2D top view

Tags

3D scan, iPhone scan, spatial survey, bird view, top view, digital scan, design process, project fragment, process archive, interior documentation, spatial study, 2D view

(

Brief

)

A rough iPhone 3D scan was converted into a flat bird-view plan. The result works as a graphic way to read the space from above.

Brief

A rough iPhone 3D scan was converted into a flat bird-view plan. The result works as a graphic way to read the space from above.

(

Note

)

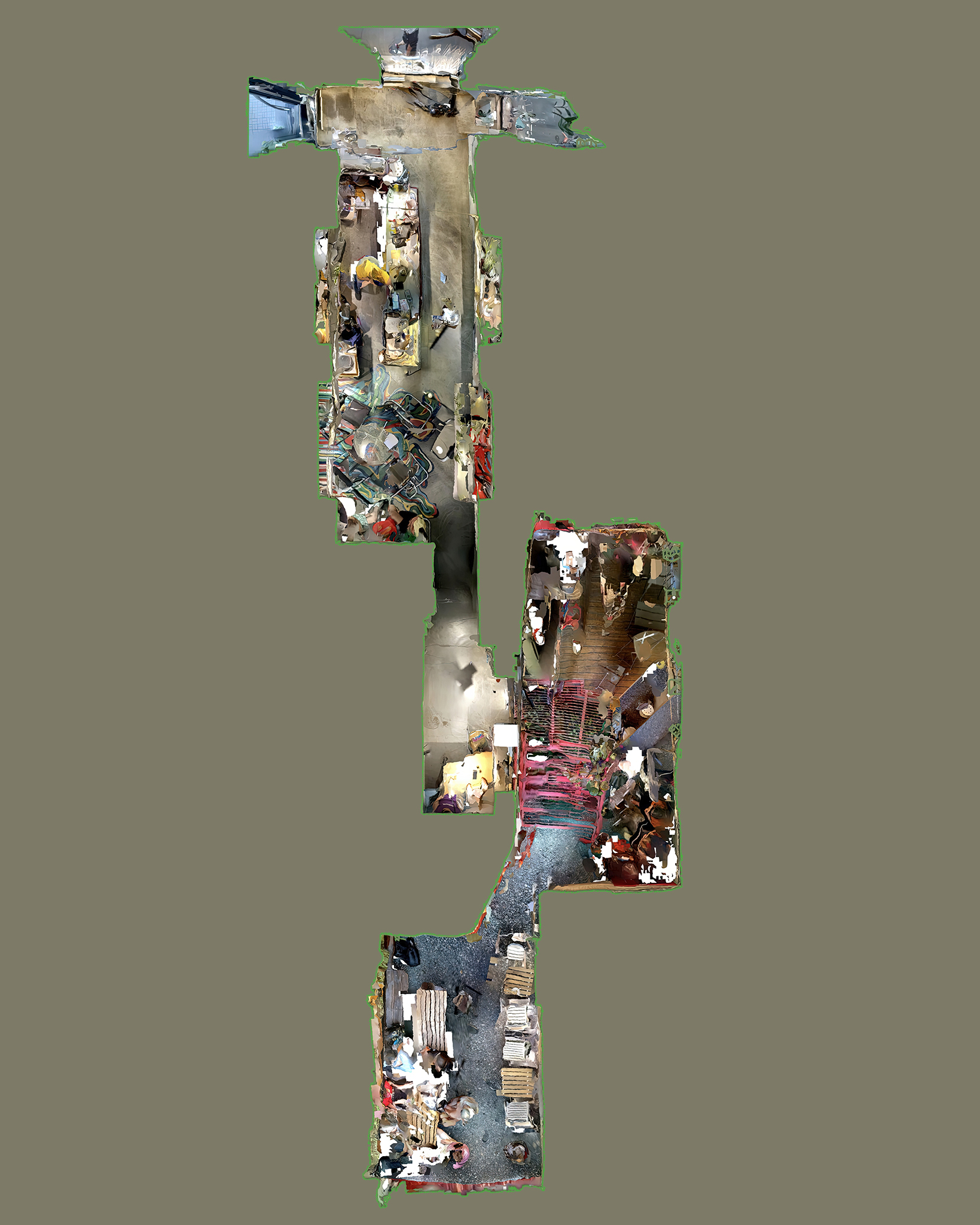

This is a rough 3D scan made with an iPhone and later converted into a 2D top view. It belongs to the design process as a quick spatial survey, somewhere between documentation, digital scan, and graphic plan.

The scan keeps the irregular edges, broken fragments, furniture, people, and small artifacts from the original capture. Because of that, the view feels less like a clean drawing and more like a working archive of the space, where the overall structure can be read from above.

Note

This is a rough 3D scan made with an iPhone and later converted into a 2D top view. It belongs to the design process as a quick spatial survey, somewhere between documentation, digital scan, and graphic plan.

The scan keeps the irregular edges, broken fragments, furniture, people, and small artifacts from the original capture. Because of that, the view feels less like a clean drawing and more like a working archive of the space, where the overall structure can be read from above.
